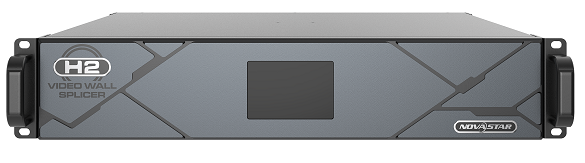

Novastar H2 Video Wall Splicer

Novastar H2 Video Wall Splicer

Novastar H2 Video Wall Splicer features excellent image quality and are specifically designed for fine-pitch LED displays. Novastar H2 Video Wall Splicer can work either as a splicer, which integrates both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable and allows for flexible configuration, as well as "hot-swapping" of input and output cards. Thanks to its excellent properties and stable performance, the H2 can be used in a wide range of applications.

Novastar H2 Video Wall Splicer HARDWARE FEATURES:

Two different types of 4K Sending Cards available:H_20xRJ45: Manages up to 13 million pixels
H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
Different configurations possible on one sending card:4x 2K×1K@60Hz
2x 4K×1K@60Hz
1x 4K×2K@60Hz
Online monitoring for all input and output cards
"Hot-swap" function for all input and output cards
IP Input Card H_2xRJ45 supports up to 100 IP cameras incl. Input Mosaic
Automatic decryption of HDCP protected sources
Multi-Screen Management
Web Control

Novastar H2 Video Wall Splicer Specifications:

Max. number of input cards: 4
Max. number of input channels: 16
Max. number of output cards: 2
Max. Loading Capacity: 26,000,000 pixels
Maximum number of layers: 32

Novastar H2 Video Wall Splicer General Specifications:

Supply voltage: AC 100-240V, 50/60HZ
Power Consumption: 210Watt
Dimensions: 482.6 x 88.1 x 455mm (WxDxH)
Weight: 15.6kg


ATTENTION: This article is only a case. All input/output cards must be ordered separately.
